EC-10V Wall Potentiometer
DESCRIPTION
The AR-POT is a precision potentiometer used to control the speed of Electronically Commutated (EC) motors via a stepless signal. This potentiometer is a manual speed control to help suit desired CFM performance and comfort levels per fan application. The AR-POT is equipped with a dry contact switch for remote ON / OFF function for the destratification fans.
SPECIFICATIONS

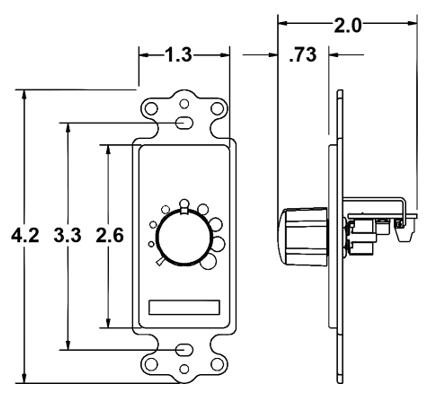

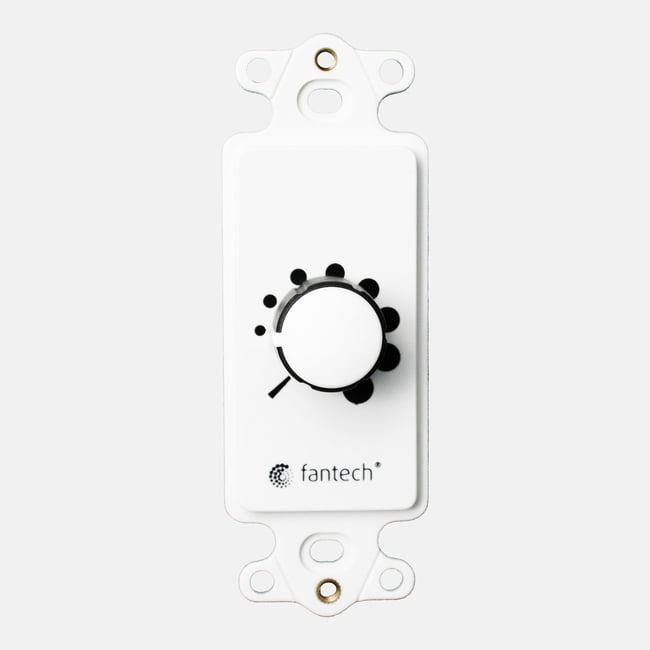

- Complete wall potentiometer (Case, Knob, Faceplate)
- Color option White (only)
- Built-in On/Off switch in dial

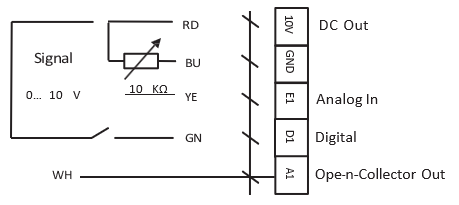

- Screw terminals for wire connection
- Rotatory knob turn type
- Linear taper
- Resistance tolerance - 10K W +/- 5%
- Protection standard - IP44 / IP54
- Ambient conditions - 0 – 50° C
Technical Specifications
| VOLTAGE TYPE | DC |
| SUPPLY VOLTAGE | 10VDC |
| MAX SUPPLY | 12VDC |
| VALUE (W) | 10K |
| CONTROL SIGNAL | 0-10K0HM |
| CONTACT RATING | 4A / 250 VAC |
| PROTECTION | IP44 |
STANDARDS
- Low Voltage Directive 2006/95/EC
- WEEE Directive 2012/19/EU
- RoHs Directive 2011/65/EU
General Notes
- Wire runs up to 1000 can be made using 20 - 24V AWG control wire
- Wire runs that exceed 1000 ft. will require an addition of a 10 - 12VDC power supply (not included)
- A single AR-POT can be used to control multiple fans with the same speed setting
