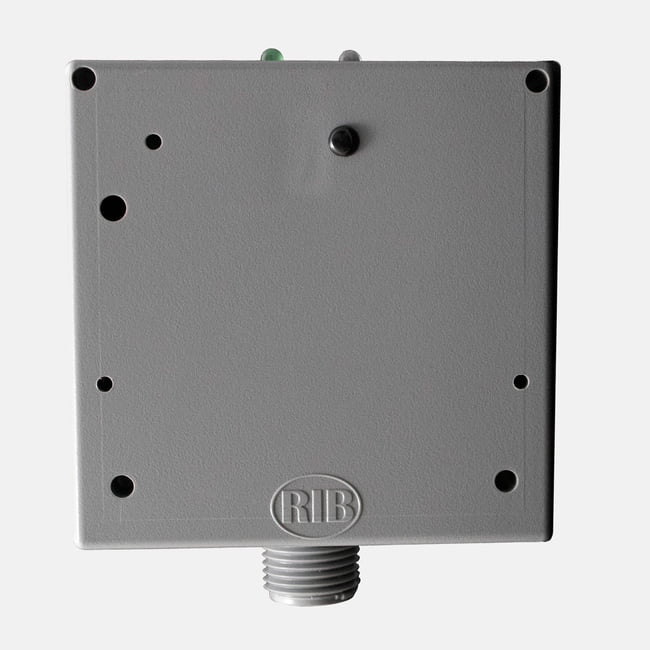

AIR-ROW-NetCom
BACnet MS/TP Network Fan Device, One 0-10Vdc output, One tachometer input, 24 Vac/dc Power Input, NEMA 1 Enclosure
Compatible with all units.
Requires AR-Adapter
SPECIFICATIONS
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Green LED: Network Communication
Blue LED: Tx / Heartbeat
Dimensions: 4.00”H x 4.00”W x 1.81”D with 0.50” NPT Hub
Origin: Made of US and non-US parts
Approvals: CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Override Switch: DIP Switch Control
Network Media: Twisted Pair 22-24AWG, shielded recommended
Terminations: Product installed at both ends of the M S/TP network – Use 120 Ω end of line resistors. All other cases – Follow instructions from the device installed at the end of the MS/TP network.
Polarity: Network is polarity sensitive
Baud Rate: 9600, 19200, 38400, 57600, 76800, 115200 (DIP Switch Selectable)
Power Input Ratings:
25 mA @ 24 Vdc
50 mA @ 24 Vac
Power Input:
24 Vac/dc ; 50/60 Hz
