Product Information and Support

LA-248 | DA-248
F-18 | F-18R | F-22
BPI
Accessories

LA-248 | DA-248

LA-248 | DA-248

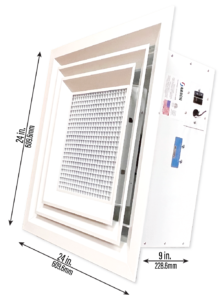

LA-248 | DA-248 Specs & Dimensions

Model Volts HZ Watts AMPS RPM dBA Max Height
LA-248 115V 50/60 29 .42 1550 59 30 ft
DA-248 115V 50/60 29 .42 1550 59 30 ft

LA-248 | DA-248

    • High-efficient ECM (Electronically Commutated Motor)
    • Built-in thermal overload protector “TOP”
    • Custom tri-blade pitch impeller
    • Three customizable speed levels for decibel sensitivity and air performance
    • Degree of protection – IP55
    • Approval – UL, CUL, & CE

LA-248

    • High quality .040 Kynar aluminum (Fan weight – 11lbs.)
    • Unique patented design
    • Removeable diffuser insert for easy access
    • Flush mountable for standard 2×2 grid tile systems
    • Unit is entirely self-contained (no extra components)
    • 100% recyclable and environmentally friendly

DA-248

    • High quality .040 Kynar aluminum (Fan weight – 11lbs.)
    • Unique patented design
    • Flow opening with 10” duct collar ring attached
    • Removeable diffuser insert for easy access
    • Flush mountable for standard 2×2 grid tile systems
    • Unit is entirely self-contained (no extra components)
    • 100% recyclable and environmentally friendly

LA-248 | DA-248

    • Conforms to UL-507 for safety and electric fans
    • ETL listed in USA and Canada
    • Intertek 4004010
    • U.S. Patented Product

Full 10-year parts and workmanship warranty included from date of purchase

LA-248 | DA-248

(Additional costs may apply for the following)

    • BMS Connectivity via 0-10VDC Relay System
    • Cord & Plug (115V 3-prong black or white UL listed)
    • AR-Switch (Wall Control) Dual function fan controller
    • Seismic Restraint Cables – Two 5’ safety cables with easy push button mechanisms by Gripple®. Each cable is UL certified with a 33lb weight  restriction and a 5:1 safety factor rating

Polar White (standard)

Black (secondary)

*All products can be professionally matched to any specific color by a process called powder coating.

F-SERIES

F-18

F-18 Dimensions

F-18R

F-18R Dimensions

F-22

F-22 Dimensions
Model Volts HZ Watts AMPS RPM dBA Max Height
F-18 115V 50/60 23 .35 1500 53 30 ft
F-18R 115V 50/60 23 .35 1500 53 30 ft
F-22 115V 50/60 0-120 1.95 0-2100 62 60 ft

F-18 | F-18R

    • 92% efficient ECM (Electronically Commutated Motor)
    • Built-in thermal overload protector “TOP”
    • Soft start feature
    • Dual customizable speed levels for decibel sensitivity and air performance
    • Ultra-reliable PA plastic fan blade material
    • Degree of protection – IP55
    • Approval – UL 1004-3 / CSA C22.2 N0. 77/ & VDE

F-22

    • High-efficient ECM (Electronically Commutated Motor)
    • Built-in thermal overload protector “TOP”
    • Soft start feature
    • Standard 0-10VDC potentiometer / BMS connectivity
    • High-performance composite fan blade material
    • Degree of protection – IP54
    • Approval – MK055-0035, UL recognized component, E347018 ZB-155

F-18

    • High quality .040 Kynar aluminum (Fan weight – 13 lbs.)
    • Unique round design for building aesthetics
    • Cross-shaped vanes for proper air distribution
    • Open concept design for field serviceability
    • 100% recyclable and environmentally friendly

F-18R

    • High quality .040 Kynar aluminum (Fan weight – 5 lbs.)
    • Unique round design for building aesthetics
    • Cross-shaped vanes for proper air distribution
    • Open concept design for field serviceability
    • 100% recyclable and environmentally friendly

F-22

    • High quality .040 Kynar aluminum (Fan weight – 13 lbs.)
    • Unique round design for building aesthetics
    • Cross-shaped vanes for proper air distribution
    • Open concept design for field serviceability
    • 100% recyclable and environmentally friendly

F-18

    • Conforms to UL-507 for safety and electric fans
    • ETL listed in USA and Canada
    • Intertek 4004010
    • U.S. Patented Product

F-18R

    • Conforms to UL-507 for safety and electric fans
    • ETL listed in USA and Canada
    • Intertek 4004010
    • U.S. Patented Product

F-22

IN TESTING for ETL listing in USA and Canada. Current testing to conform to UL-507 for safety and electric fans through Intertek©

Full 10-year parts and workmanship warranty included from date of purchase.

F-18

(Additional costs may apply for the following)

    • AR-Adapter for BMS Connectivity via 0-10VDC
    • AR-Switch (Wall Control) dual function fan controller
    • AR-POT (Wall Potentiometer) for 0-10VDC control
    • Cord & Plug (115V 3-prong black or white UL listed)
    • Tilt Bracket with multiple angle options. Can be mounted on ceilings or walls for specific air targeting
    • Hanging Kits – Two 5’ safety cables with easy push button mechanisms by Gripple®. Each cable is UL certified with a 33lb weight restriction and a 5:1  safety factor rating

F-18R

(Additional costs may apply for the following)

    • AR-Adapter for BMS Connectivity via 0-10VDC
    • AR-Switch (Wall Control) dual function fan controller
    • AR-POT (Wall Potentiometer) for 0-10VDC control
    • Cord & Plug (115V 3-prong black or white UL listed)
    • Blade Guard for specific balloon or ball control
    • Tilt Bracket with multiple angle options. Can be mounted on ceilings or walls for specific air targeting
    • Hanging Kits – Two 5’ safety cables with easy push button mechanisms by Gripple®. Each cable is UL certified with a 33lb weight restriction and a 5:1  safety factor rating

F-22

(Additional costs may apply for the following)

    • AR-Switch (Wall Control) dual function fan controller
    • AR-POT (Wall Potentiometer) for 0-10VDC control
    • Cord & Plug (115V 3-prong black or white UL listed)
    • Tilt Bracket with multiple angle options. Can be mounted on ceilings or walls for specific air targeting
    • Hanging Kits – Two 5’ safety cables with easy push button mechanisms by Gripple®. Each cable is UL certified with a 33lb weight restriction and a 5:1  safety factor rating

Polar White (standard)

Black (secondary)

*All products can be professionally matched to any specific color by a process called powder coating.

BPI - Air Purification

BPI (Bi-Polar Ionization)

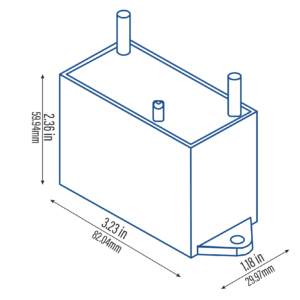

BPI (BI-POLAR IONIZATION) Dimensions

Model Voltage Type HZ Watts Ion Count
BPI GEN 24VDC or 115V 50/60 7W 49.8M/cm3
  • 24VDC option for HVAC connection without fan
  • 115V power option when BPI is mounted in fan
  • Inline C-Class Fusing: 100mA @ 115V
  • 300V (24 AWG) power wire
  • RED wire – Positive / Black wire – Neutral
  • Ion Count = 49.8M / cm3
  • Green LED will illuminate when powered & operating
  • BPI unit can be powered 24/7 with fan

The Air-Row BPI uses bi-polar ionization technology, which is a type of air purification that uses voltage to generate electrically charged particles with extra electrons. The BPI is a needle point bi-polar ionization cartridge that creates positively and negatively charged ions, that help purify indoor air quality for human occupancy. The BPI cartridge carries two precise carbon fiber emitters to create electrodes which helps break down molecule chains into smaller and less harmful substances in bacteria and viruses.

Our specific BPI cartridge can be installed in all Air-Row Fan applications. With in-house testing and precise placement, the BPI helps neutralize viruses and bacteria while the fan sends the purified air towards the ground helping with poor air circulation which converts to cleaner air and significant energy savings.

Conforms to UL STD 867. UL STD 2998

Certified to: CAN/CSA STD C22.2 NO. 187

2-year limited warranty included from date of purchase.
